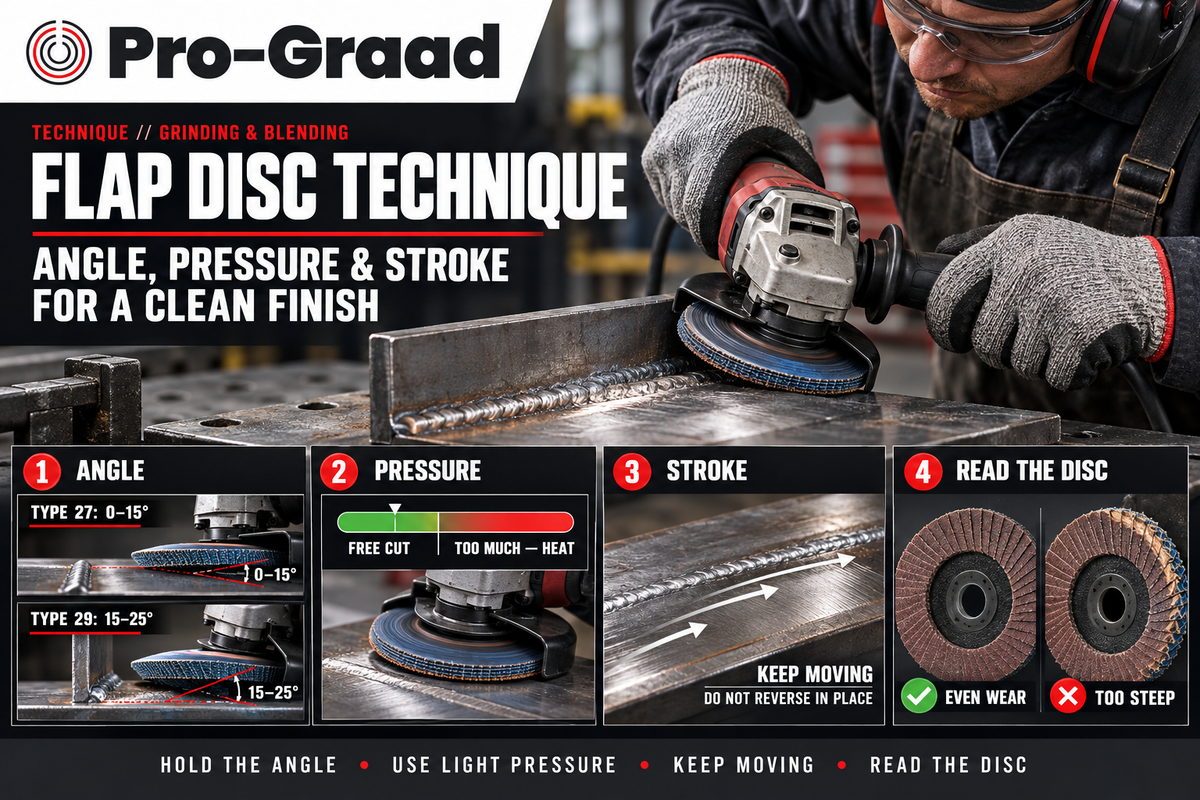

Flap Disc Technique: Angle, Pressure, and Stroke for a Clean Finish
Two operators can run the same disc on the same weld and get two different parts. The disc sets the ceiling. Your hands decide how close you get to it.
Hold the angle the profile was built for and keep holding it across the whole pass. Type 27 at 0 to 15 degrees, Type 29 at 15 to 25.
Press only until the disc cuts freely. If the grinder audibly drops in speed, you are past the useful limit and converting effort into heat.
Keep moving, and never reverse in place. Every stop or abrupt direction change leaves a flat or a divot you will have to blend out.
Read the disc. Its wear pattern tells you exactly what your technique is doing wrong, before the part does.
Most flap disc complaints are blamed on the disc. Most of them are technique. A disc that "wears out too fast," "leaves gouges," or "stopped cutting" is usually reporting an angle, pressure, or stroke problem accurately.
This page is about running the disc. Choosing it — Type 27 versus Type 29, zirconia versus ceramic, which grit to start on, and what backing to trust — is covered in our flap disc selection guide. If you are still deciding whether a flap disc is the right format at all, start with flap vs. fiber vs. non-woven or flap disc vs. grinding wheel.
Thirty seconds before the first pass
Nothing here is new, and all of it gets skipped. It takes less time than walking back to the bench for a replacement disc.
- Disc speed rating at or above the grinder's no-load RPM. Read both labels. Diameter alone tells you nothing. Full chart in our abrasive RPM and SFPM reference.
- Inspect the disc. Cracked plate, missing or delaminated flaps, a disc that was dropped on concrete — set it aside.
- Seat it properly. A threaded 5/8"-11 hub disc spins down until it bottoms on the spindle shoulder. A 7/8" arbor disc needs its flange set and lock nut; if those are fighting you, see our flanges and lock nuts guide.
- Guard on, positioned between the disc and you. Flap discs are run on tools designed with guards, and the coated abrasive safety standard expects the guard to stay installed.
- Run it up off the work. Let the tool reach full speed, pointed away from you and anyone else, before the disc touches the part.
Angle: holding it, not just finding it
Every operator knows the number. Fewer hold it for the length of a pass. The angle you start at is rarely the angle you finish at, because wrists rotate, elbows drop, and the part changes shape under you.
| Profile | Working angle | What contacts the work |
|---|---|---|
| Type 27 (flat) | 0–15° | A broad band of the flap face. Blending, flat work, finish passes. |
| Type 29 (conical) | 15–25° | The angled face, presented at a steeper attack. Weld knockdown, edges, contours. |
The geometry behind those numbers, and why the wrong profile at the wrong angle eats discs, is in section 01 of the selection guide. What matters here is keeping the angle constant once you have it:
- Both hands, side handle in. Mount the side handle on whichever side lets your wrist stay straight at the working angle. A bent wrist drifts.
- Move from the shoulders and feet, not the wrist. On a long seam, step or shift your weight along it. Reaching with the arms changes the angle at the far end of every pass.
- Let the tool's weight work for you on flat horizontal work. A 4-1/2" grinder's own mass is close to the right load for blending. You are guiding it more than pushing it.
- Re-set the angle when the surface changes. Going around a pipe, over a gusset, or into a corner changes the reference plane. The angle is measured to the surface under the disc, not to the floor.
Approach edges so the disc's rotation carries off the edge, not into it. Rotation driving into a sharp edge or corner is what snags the disc and kicks the tool. Check the rotation arrow on the gear head, and plan edge passes so the abrasive leaves the part at the edge rather than catching on it.
Pressure: the tool tells you when it is too much
Zirconia and ceramic grains are designed to fracture under load and expose new cutting edges. That needs real pressure. Past a certain point, though, more pressure stops adding cut and starts adding heat. The useful window sits between those two, and the grinder announces both edges of it.
Too little
- Disc skates and rubs instead of biting
- Sparks thin and short
- Disc face turns shiny and smooth — the grain is not fracturing
- Worst with ceramic, which depends on load to stay sharp
Too much
- Motor pitch drops noticeably and stays down
- Work discolors; stainless shows straw and blue tint
- Flaps shed fast and the disc smells hot
- Deep, uneven scratches that take extra passes to erase
The practical cue is sound. A grinder cutting well holds close to its free-running pitch with a slight drop. If you hear it bog and you are holding it there, back off until it recovers. Removal does not go up when the motor slows — it goes down, while heat goes up.
Cordless and smaller grinders reach the bog point sooner. That is the strongest argument for matching grain to tool. A ceramic disc on a tool that cannot sustain the load needed to fracture it is the expensive way to get a glazed disc. Our grain comparison covers where each mineral actually pays off.
Stroke: where most finishes are won or lost
A flap disc removes material wherever it dwells. Any place the disc slows, stops, or turns around gets more grinding than the surrounding surface. That single fact explains most divots, flats, and wavy blends.
- Long, steady passes at a consistent speed. Pick a travel rate and keep it. Speeding up and slowing down along the seam grinds it unevenly.
- Overlap every pass. Each stroke should cover part of the last one so there are no ridges between tracks.
- Never reverse direction with the disc loaded on the surface. Sweep past the end of the work, or ease off at the end of the stroke, then come back. Reversing in place digs the same spot twice.
- Do not park. If you need to stop and look, lift the disc off the work first. A stationary disc on the part is a flat spot in a second or two.
- Cross the previous grit's pattern. When you step to the next grit, work at an angle to the last scratch direction. When the old pattern is gone, that grit is finished. Sequencing rules are in section 04 of the selection guide.
Blending a weld: knock down, blend, stop
This is the job flap discs get bought for, and it has a natural sequence that puts each profile to work at the angle it was designed for.
| Stage | Disc | Technique |
|---|---|---|
| Knock down | Type 29, 40 grit | Work the crown of the bead at 15–25°. Take it down toward the parent metal, not into it. |
| Blend | Type 27, 60–80 grit | Drop to a shallow angle and blend the toes into the surrounding surface with long overlapping passes. |
| Prep | Type 27, 80–120 grit | Only if the next step needs it. Paint and powder want some tooth; stopping coarser saves time. |
Flush is the stopping point. Below flush is a defect. Grinding past the weld into the parent metal thins the joint at the toe — exactly where the joint is designed to carry load. Watch the edges of the bead rather than the center: once the toes blend into the parent surface without a step, you are done with the coarse disc.
If a bead is large enough that the coarse flap disc is spending minutes on it, a bonded wheel for the bulk followed by a flap disc to blend is often faster overall. That trade-off is laid out in flap disc vs. grinding wheel.
Heat: manage it before you see it
By the time color appears, the damage is done. On carbon steel that may only cost you appearance. On stainless it can cost you corrosion resistance, and on thin sheet it costs you flatness.
- Shorter passes on stainless and thin sheet. Stainless holds heat in the cut zone longer than mild steel. Make a pass, move to another section, come back.
- Spread the work. On a long seam in sheet metal, grind short sections at alternating locations rather than working one end to the other. Concentrated heat is what warps panels.
- Back off pressure before you add speed. Heat is a pressure problem first. A lighter hand at the same travel rate usually solves it.
- Replace a worn disc. A disc running on its last few millimeters of flap rubs more than it cuts, and rubbing is heat.
If you already have tint on stainless, removal and restoration are covered in how to remove heat tint from stainless welds and passivating stainless steel.
Read the disc
A flap disc records how it was used. Look at the face after a few minutes of work and it will tell you what to change.
Illustrative wear patterns, not to scale. A disc worn evenly across a band of its face has been run at the angle its profile was designed for.
| What you see | Likely cause | Fix |
|---|---|---|
| Outer edge worn away, center still fresh | Angle too steep for the profile — usually a Type 27 held at Type 29 angles | Flatten the angle or switch to Type 29 |
| Face shiny and smooth, cut dropping off | Glazing: grain dulled without fracturing, typically from too little load | Commit more pressure, or move to a grain your tool can load |
| Face smeared with bright metal | Loading: soft metal packed between the grains, common on aluminum | Lighter pressure, a top-coated disc, and a disc kept for non-ferrous only |
| Divots or flats in the work | Dwelling, parking, or reversing on the surface | Constant travel; sweep past ends instead of reversing |
| Disc bounces or chatters | Angle too flat on a Type 29, uneven flap wear, or the disc not seated | Re-seat, correct the angle, retire an out-of-round disc |
| Old scratches survive the finer grit | Grit step too large, or the coarse stage was not finished | Step one grit at a time; cross the previous pattern |
| Plate edge touching the work | Flaps worn down to the backing | Trim the plate if the disc is trimmable; otherwise retire it |
More symptom-by-symptom troubleshooting across all abrasive formats is in common deburring and finishing problems.
Trim, keep going, or retire
On a trimmable disc, cutting the plate edge back exposes fresh flap and puts the abrasive back in contact before the backing. Trim evenly around the circumference, only on a disc designed for it, and stop when the remaining flap no longer reaches the work cleanly at your working angle. A disc that has to be tilted further and further to make contact has changed your technique for you — replace it.
Technique by material
| Material | What changes in your hands | Go deeper |
|---|---|---|
| Mild / carbon steel | The forgiving one. Full working pressure, normal pass length. Heat mainly matters on thin sheet. | Surface preparation |
| Stainless steel | Shorter passes, lighter pressure, spread the heat. Dedicate discs to stainless only and keep them marked and separate — a disc that has touched carbon steel can embed iron that rusts later. | Weld cleaning & heat tint |
| Aluminum | Light pressure and a clean surface. Watch for loading and stop when the face smears. Never use a disc that has run on steel. | Aluminum finishing |
| Cast iron | Steady moderate pressure. Brittle edges chip if you snag them, so watch rotation at edges. | Selection guide |
Know when to put the flap disc down. A flap disc is a grinding and blending tool. Once the job is about appearance rather than removal — a uniform satin, a brushed grain, prep for a specific surface finish — a non-woven surface conditioning disc will get there faster and without adding new scratches.
The discs used in this guide
Every SuperGrindz flap disc is 4-1/2" high-density zirconia on a 5/8"-11 threaded hub with a trimmable backing. Zirconia suits the moderate, steady pressure described in section 03 without demanding the load ceramic needs. Full spec breakdown is in the selection guide.
| Disc | Stage in this guide | |
|---|---|---|
| Type 27 · 36 grit | Heavy stock removal on flat work | Buy on Pro-Graad |
| Type 27 · 40 grit | Weld knockdown where a flat profile is needed | Buy on Pro-Graad |
| Type 27 · 60 grit | Blending weld toes — the workhorse | Buy on Pro-Graad |
| Type 27 · 80 grit | Final blend and coating prep | Buy on Pro-Graad |
| Type 27 · 120 grit | Finish prep before non-woven | Buy on Pro-Graad |
| Type 29 · 40 / 60 grit | Weld knockdown on edges, contours, and pipe | Buy on Pro-Graad |
| Type 29 · 80 grit | Blending on contours after a coarse pass | Buy on Pro-Graad |
The two-disc weld kit: a Type 29 in 40 grit to knock the bead down and a Type 27 in 80 grit to blend it flat. Each runs at its own angle, and between them they cover most weld cleanup without a third disc.
Common questions
What angle should I hold a flap disc at?
Type 27 flat discs at 0 to 15 degrees, Type 29 conical discs at 15 to 25 degrees, measured to the surface under the disc. Holding that angle through the whole pass matters as much as finding it — move from your shoulders and feet rather than your wrist so it does not drift.
How hard should I press on a flap disc?
Firmly enough that the disc bites and cuts freely, and no harder than the point where the grinder's motor pitch drops and stays down. Past that point removal falls and heat rises. Self-sharpening grains like zirconia and ceramic need steady load to keep fracturing, so a feather touch is not the answer either.
Why does my flap disc leave gouges or divots?
The disc is dwelling in one place. Stopping on the work, slowing down mid-pass, or reversing direction with the disc still loaded all grind that spot more than its surroundings. Keep a constant travel speed, overlap passes, and sweep past the ends of the work instead of reversing.
Why did my flap disc go shiny and stop cutting?
Either it glazed or it loaded. A smooth, dull-shiny face means the grain dulled without fracturing, usually from too little pressure — especially with ceramic. A face smeared with bright metal means it loaded, which is common on aluminum; use lighter pressure and a top-coated disc reserved for non-ferrous work.
When should I trim or replace a flap disc?
Trim a trimmable disc when the plate edge starts reaching the work before the flaps do. Replace it when the remaining flap no longer contacts cleanly at your normal working angle, when it starts to bounce from uneven wear, or when it runs noticeably hotter while cutting less.
Can I use the same flap disc on stainless and carbon steel?
Not in that order. A disc used on carbon steel can carry iron particles onto stainless and cause rust spots later. Keep a dedicated, clearly marked set of discs for stainless only, and use discs rated contaminant-free for stainless work.
High-density zirconia flap discs
4-1/2" discs on 5/8"-11 threaded hubs with trimmable backing. Type 27 flat from 36 to 120 grit, Type 29 bevel from 40 to 80. Engineered and sold direct.
Buy on Pro-Graad Buy on AmazonBuilt for the Work. Priced for the Worker.
Fighting a finish you cannot fix? Tell us the material, the disc, the tool, and what the surface looks like. info@pro-graad.com
Related Reading- Flap discs: Type 27 vs Type 29, zirconia vs ceramic, and grit sequencing
- Flap disc vs grinding wheel
- Flap disc vs. fiber disc vs. non-woven disc
- Ceramic vs. zirconia vs. aluminum oxide
- How to choose the right abrasive grit
- The real cost of abrasives: cost-per-part vs. sticker price
- ANSI B7.7, Safety Requirements for the Use of Coated Abrasives — guard requirements for coated abrasive products on guarded machines.
- OSHA, Angle Grinder Safety toolbox talk — speed rating, inspection, and PPE practice.
- Norton Abrasives, flap disc do's and don'ts — Type 27 and Type 29 working angles and guard use.
- CUMI Abrasives, flap disc grinding and finishing guidance — continuous movement, overlapping strokes, and pressure effects on heat and finish.
- Empire Abrasives and PushCorp, weld grinding guidance — dedicated abrasives for stainless, and loading behavior on aluminum.
- Published angle grinder operating instructions — snagging and kickback at edges and corners.
- Pro-Graad SuperGrindz published product specifications.
Wear-pattern illustrations are qualitative, not measured data. Speed ratings marked on your product govern. This page is general reference information, not a substitute for the tool and abrasive manufacturers' instructions or your employer's safety program.
