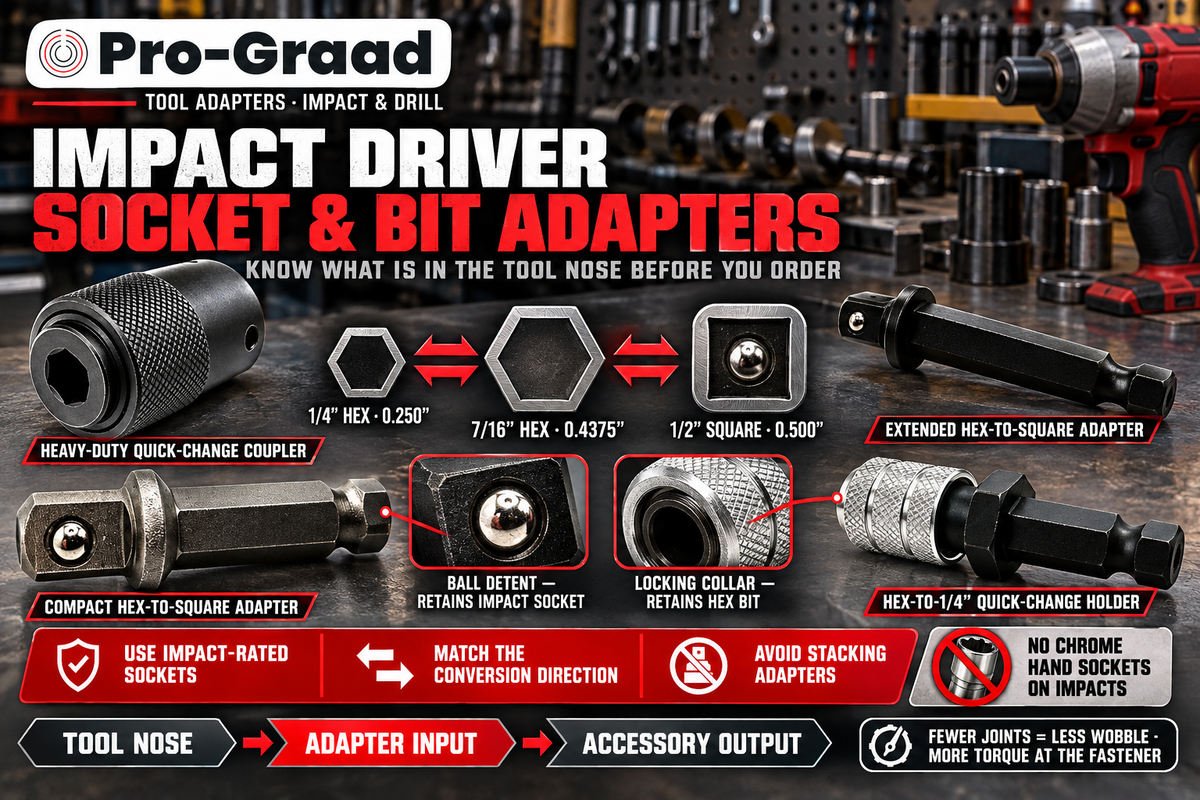

Impact Driver Socket & Bit Adapters Explained: 7/16" Hex to 1/4" Hex and 1/2" Square
Three drive standards, five adapters, and one question that decides all of it: what is actually in the nose of your tool?
Most adapter problems are not adapter problems. Somebody orders a 7/16" hex adapter for a tool with a 1/4" hex chuck, or runs a chrome hand socket on an impact, or stacks two adapters and an extension and wonders why the socket wobbles off the bolt. The parts are simple. The fitment logic is where people get burned.
This guide covers the three drive interfaces you will run into on impact tools and drills, which adapter converts which direction, how ball-detent and detent-pin retention differ, and the handful of rules that keep the torque going into the fastener instead of into a sheared bit.
01The Three Drive Standards
Every adapter in this guide converts between three interfaces. Know these and the rest is just reading labels.
| Interface | Size (Across Flats) | Where You Find It | What It Drives |
|---|---|---|---|
| 1/4" Hex | 0.250" | Standard cordless impact drivers, quick-change bit holders, most drill accessories | Screwdriver bits, nut setters, small drill bits, 1/4" hex-shank attachments |
| 7/16" Hex | 0.4375" | Heavy-duty hex-chuck impact wrenches (utility/lineman style), large pneumatic screwdrivers, 1/2" drill chucks | Ship augers, large nut setters, heavy power bits, 7/16" hex adapters |
| 1/2" Square | 0.500" | Impact wrenches, ratchets, breaker bars, torque wrenches | 1/2" drive sockets and extensions |
The 7/16" hex is the one that confuses people. It looks like a scaled-up bit shank, and that is exactly what it is: a large hex shank built for tools that put out far more torque than a 1/4" bit can survive. It is also the interface that ties the other two together, which is why most of the adapters below start from it.
02Check Your Chuck Before You Order Anything
- Look at the tool's spec plate or manual. It will list the chuck or anvil as 1/4" hex, 7/16" hex, 3/8" square, or 1/2" square. That line settles it.
- Measure if the plate is gone. Put calipers across two flats of a bit that fits snugly. 0.250" is 1/4" hex. 0.4375" is 7/16" hex. A square anvil is measured flat-to-flat the same way.
- Drills are different. A three-jaw chuck clamps on the flats of a hex shank, so a drill with a 1/2" capacity chuck will grip a 7/16" hex shank. A 3/8" capacity chuck will not.
- Then decide which direction you are converting. Tool side first, accessory side second. Every adapter has an input and an output, and they are not interchangeable.
03Four Conversions, Mapped
047/16" Hex to 1/4" Hex: Running Small Bits in a Big Tool
A 7/16" hex to 1/4" hex adapter is a quick-change bit holder with a large hex shank. It drops into a 7/16" hex chuck or a 1/2" drill chuck and gives you a standard spring-loaded 1/4" hex socket on the business end. Insert a bit, it locks; pull the collar, it releases.
The use case is consolidation. If the heavy hex-chuck tool is already in your hand, or the 1/2" drill is already on the job, you do not need to go back to the truck for the compact driver to sink a run of screws or spin a nut setter.
The catch: the 1/4" bit is now the weak link
A 7/16" hex-chuck tool is built to put out torque that a 1/4" hex shank was never meant to carry. The adapter itself will handle it. The bit may not. Use these rules:
- Impact-rated bits only. Standard hardened insert bits are brittle and will snap or round off under impact loading. Impact-rated bits have a torsion zone designed to flex.
- Feather the trigger. Most tools in this class have speed or mode settings. Use the low one for small fasteners. Full output into a #2 Phillips is how you twist a head off a deck screw.
- Short bits beat long bits. A 1" insert bit seated in the holder is stiffer and wobbles less than a 6" power bit hanging off the end.
- Abrasive attachments go in the drill, not the impact. A 1/4" hex-shank strip disc or pad adapter runs on continuous rotation. The hammer mechanism of an impact tool is not what those accessories are built for unless the accessory is specifically rated for impact use.
057/16" Hex to 1/2" Square: Sockets on a Hex-Chuck Tool
This is the adapter that turns a 7/16" hex-chuck impact or a 1/2" drill into a socket driver. Pro-Graad builds it three ways, and the differences are length and how the socket is held on.
| Version | Length | Socket Retention | Best For |
|---|---|---|---|
| Standard | 2" | Spring-loaded ball detent | Open access, maximum control, fastest socket swaps |
| Detent Pin | 3" overall (2.5" added reach) | Spring-loaded detent pin | Overhead and vertical work where a dropped socket is a real problem |
| Extended | 3.5" | Spring-loaded ball detent | Recessed fasteners and clearing a tool body without adding a separate extension |
Ball detent vs. detent pin
A ball detent is a spring-loaded ball on one face of the square that presses into the socket's internal recess. Push a socket on, pull it off. It holds by spring friction, which is enough for most work and makes swapping sizes fast.
A detent pin is a spring-loaded pin that pops into the cross hole drilled through the drive end of an impact socket. Once it is seated, the socket is mechanically captured. You have to depress the pin to get it off. Slower to swap, but the socket does not walk off the adapter when you are working overhead or upside down. If you are using the pin version, use sockets that have the cross hole; without one, the pin works like a ball detent and you lose the advantage.
Why length matters more than people think
Every inch between the chuck and the socket adds leverage for wobble and a little more spring in the drive line. On an impact, that spring soaks up some of each blow before it reaches the fastener. Run the shortest adapter that reaches. Reach for the 3.5" when the socket genuinely has to clear something, not as a default.
061/2" Square to 7/16" Hex: The Reverse Conversion
The fourth adapter goes the other way. It mounts on a 1/2" square drive and gives you a 7/16" hex quick-release chuck. That lets a 1/2" drive impact wrench, ratchet, or breaker bar run 7/16" hex-shank bits: ship augers, large nut setters, heavy power bits.
Where it earns its spot: the shop or truck that has a 1/2" impact wrench but not a dedicated 7/16" hex-chuck tool, and a job that suddenly needs one. It is also the way to put hand-ratchet control on a 7/16" hex bit when a powered tool would over-drive the fastener. The spring-loaded collar retains the bit; pull it to release.
07Which Adapter Do You Need?
| Your Tool Has | You Want to Run | Adapter |
|---|---|---|
| 7/16" hex chuck | 1/4" hex bits | 7/16" hex to 1/4" hex bit holder |
| 1/2" drill chuck | 1/4" hex bits / attachments | 7/16" hex to 1/4" hex bit holder |
| 7/16" hex chuck | 1/2" drive sockets | 7/16" hex to 1/2" square (2", 3" pin, or 3.5") |
| 1/2" drill chuck | 1/2" drive sockets | 7/16" hex to 1/2" square (2", 3" pin, or 3.5") |
| 1/2" square drive | 7/16" hex-shank bits | 1/2" square to 7/16" hex quick release |
| 1/4" hex chuck | Anything above | None of these. The 7/16" shank will not fit a 1/4" chuck. |
08Rules That Keep Adapters Alive
- Impact sockets on impact tools. Chrome hand sockets are hard and brittle; under impact they can crack or split. Impact sockets are made from tougher steel and are built to take repeated shock.
- Do not stack adapters. Two adapters plus an extension is three joints of play. Every joint rounds faster and every joint costs you impact energy. Pick the one adapter that makes the conversion in a single step.
- Seat it fully. A hex shank sitting halfway into a quick-change chuck is loading the retention mechanism instead of the hex flats. Push it in until it clicks.
- Check retention before going overhead. Tug the socket. If a ball detent has gone soft from wear, the socket will fall at the worst possible moment. That is the job the detent pin version is for.
- Retire rounded parts. Rounded hex corners or a square drive with mushroomed edges will slip under load. Adapters are consumables on a hard-working tool.
- Eye protection, every time. Bits and sockets that fail under impact do not fail quietly.
09Pro-Graad Impact & Drive Adapters
7/16" Hex to 1/4" Hex Quick-Change Bit Holder
Spring-loaded 1/4" hex bit retention on a 7/16" hex shank. Carbon steel and aluminum construction.
7/16" Hex to 1/2" Square Socket Adapter, 2", Ball Detent
Shortest reach, maximum control. CNC-machined, no weld points.
7/16" Hex to 1/2" Square Socket Adapter, 2.5" Extension, Detent Pin
3" overall. Pin locks into the socket cross hole for overhead and vertical work.
7/16" Hex to 1/2" Square Socket Adapter, 3.5" Extended, Ball Detent
Extra reach for recessed fasteners without adding a separate extension.
Impact Wrench Adapter, 1/2" Drive to 7/16" Hex Quick Release
Runs 7/16" hex-shank bits on a 1/2" drive impact wrench or ratchet. Chrome molybdenum steel, knurled grip.
10FAQ
Will a 7/16" hex adapter fit my impact driver?
Only if your impact driver has a 7/16" hex chuck. Most compact cordless impact drivers use a 1/4" hex chuck, and a 7/16" shank will not go in. Check the spec plate or measure a bit that fits: 0.250" across the flats is 1/4" hex, 0.4375" is 7/16" hex.
Can I use a 7/16" hex adapter in a regular drill?
Yes, if the drill has a 1/2" capacity three-jaw chuck. The jaws clamp on the flats of the 7/16" hex shank. A drill with a 3/8" chuck will not open wide enough.
What is the difference between a ball detent and a detent pin socket adapter?
A ball detent holds the socket with a spring-loaded ball pressing into the socket's recess, so sockets push on and pull off quickly. A detent pin snaps into the cross hole on an impact socket and mechanically locks it in place until you press the pin. The pin version is slower to swap but will not drop a socket during overhead work.
Why do my 1/4" bits keep breaking in a 7/16" hex adapter?
A 7/16" hex-chuck tool can put out far more torque than a 1/4" hex bit is built to carry. Use impact-rated bits, keep bits short, and run the tool on a lower speed or mode setting for small fasteners.
Can I use chrome sockets with a 7/16" hex to 1/2" square adapter on an impact?
No. Chrome hand sockets are hard and brittle and can crack under impact loading. Use impact-rated sockets on any impact tool. Chrome sockets are fine on the adapter when it is in a drill or on a hand ratchet.
How do I run 7/16" hex bits on a 1/2" impact wrench?
Use a 1/2" square drive to 7/16" hex quick-release adapter. It mounts on the square anvil like a socket and gives you a spring-loaded 7/16" hex chuck for ship augers, large nut setters, and other 7/16" hex-shank bits.
