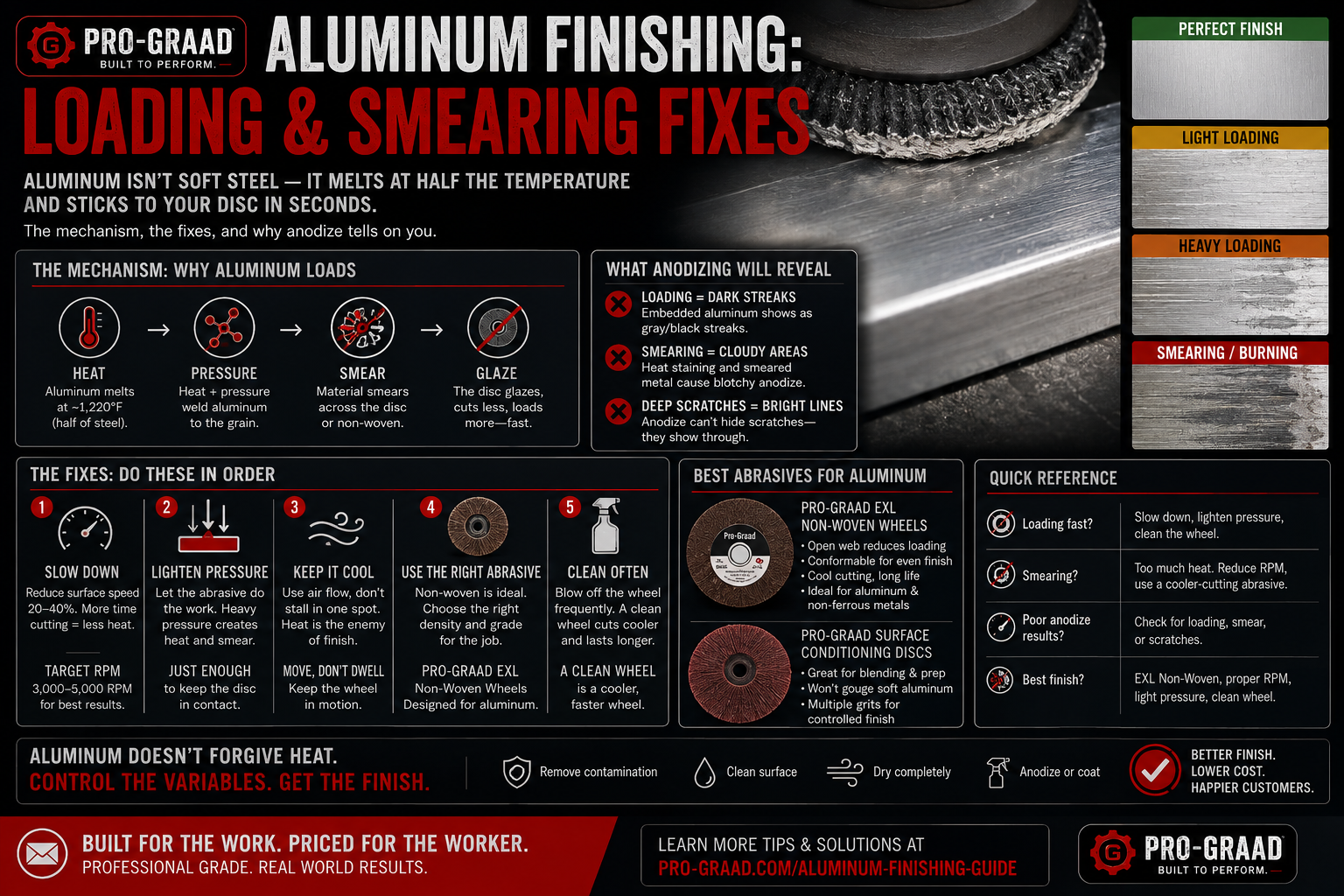

Aluminum Finishing:
Loading, Smearing, Discoloration
Everyone treats aluminum like soft steel. It isn't — it's a different material problem with an opposite failure mode. Steel wears your abrasive out. Aluminum welds itself to it, in seconds, and then you're rubbing a part with an aluminum-tipped disc and wondering why nothing's cutting.
Aluminum is not soft steel. It's a metal that melts at less than half the temperature of steel, conducts heat several times faster, and flows instead of chipping.
Every one of the three failures in the title comes from that, and none of them behave the way their steel equivalents do. Aluminum loading isn't clogging. Aluminum smearing isn't a cosmetic problem. And "discoloration" on aluminum is four separate problems that happen to look similar.
Get it wrong and you don't just do a slow job — you produce a part that looks acceptable, goes to anodize, and comes back covered in evidence.
Aluminum Is the Opposite Problem to Stainless
If you've read our stainless guidance, invert most of it. The two alloys fail in opposite directions, and the instincts you build on one will hurt you on the other.
| Carbon Steel | Stainless | Aluminum | |
|---|---|---|---|
| Melting point | High | High | Under half that of steel |
| Heat conduction | Moderate | ~⅓ of carbon steel | Roughly 4× carbon steel, ~10× stainless |
| Where the heat goes | Local hot spot | Stays at the contact point | Spreads through the whole part |
| Heat failure mode | Burning, temper loss | Tint, chromium depletion | Softening, smearing, distortion |
| Under the abrasive | Chips | Work-hardens, chips reluctantly | Flows and sticks |
| Its oxide | Rust — porous, doesn't protect | Chromium oxide — thin, protective | Aluminum oxide — protective, and harder than the metal under it |
↔ Scroll table horizontally on mobile · Approximate relative values
The Inversion That Catches People
On stainless, heat concentrates at the contact point because the alloy won't conduct it away — so you get local burn and tint. On aluminum, the heat leaves the contact point immediately and heats the entire part. That sounds like good news. It isn't: it means thin sections distort, you can't feel the problem developing through the tool, and the contact point still gets hot enough to soften a metal that melts at half steel's temperature.
Stainless tells you it's overheating by changing color. Aluminum just quietly gives up.
One more property that matters more than people expect: aluminum's own oxide is harder than aluminum. Aluminum oxide — the same mineral in half the abrasives on the market — forms on the surface within minutes of exposure. You are, quite literally, cutting through an abrasive to get to the metal. It dulls product faster than the base metal ever would.
Aluminum Loading Is Welding, Not Clogging
This is the single most important thing in this guide, and it's why every fix that works on other materials fails here.
When paint or rust loads an abrasive, debris packs into the spaces between grains. It's mechanical. Clear the space and you're back in business. Aluminum does something else entirely.
Grain-level view. Once a grain is capped, it is finished — aluminum sliding on aluminum has no cutting edge at any pressure. Cleaning the disc rarely recovers it, because the aluminum isn't sitting in the pores, it's bonded to the grain.
Friction heat softens aluminum at the contact point. Softened aluminum adheres to the grain rather than shearing off as a chip. Now the grain has an aluminum cap, and aluminum doesn't cut aluminum — so it rubs, which makes more heat, which welds on more aluminum. It's a runaway, and it takes seconds.
Which reframes every fix. If loading were mechanical packing, you'd solve it with clearance — coarser grit, more open structure. Those help a little. But the real levers are the ones that control heat and prevent adhesion, and they're not the ones people reach for:
| Lever | Direction | Why It Works on Aluminum Specifically |
|---|---|---|
| Tool speed | SLOW DOWN | The counterintuitive one. Surface speed drives friction heat directly. Most operators speed up when a disc stops cutting — on aluminum that accelerates the welding. |
| Stearate coating | USE IT | A dry lubricant barrier between grain and metal. It exists almost entirely for this problem. Not optional on aluminum, whatever the sticker says. |
| Pressure | EASE OFF | Pressure is heat. And unlike steel, more pressure doesn't buy you cut rate here — past the window it buys you a welded grain. |
| Coat | OPEN | Closed coat has nowhere for the chip to go, so it stays at the contact and heats up. Open coat gives it an exit. |
| Mineral | SILICON CARBIDE | Sharper and more friable — it cuts at lower pressure, which means less friction, which means less heat. Aluminum oxide has to be pushed harder to cut, and pushing harder is the problem. |
| Lubricant / wax | CONSIDER IT | Grinding wax or a suitable fluid attacks the mechanism at the source. Check it's compatible with your finish and any downstream coating or anodize. |
↔ Scroll table horizontally on mobile
Why "Just Clean the Disc" Doesn't Work
You can pick packed swarf out of a loaded disc. You cannot un-weld aluminum from a grain. Once the cap forms, the grain has no cutting edge — the abrasive is spent whether or not it looks it. This is why aluminum eats product when the technique is wrong, and why fixing the technique changes disc life more than changing brands ever will.
Smearing: The False Surface
The mirror image of loading. Instead of aluminum sticking to the disc, aluminum flows across the part — smeared into a thin skin over whatever was underneath.
It looks like a finish. It's a lid.
What It Hides
- Porosity in castings. The single worst case. Smeared metal bridges over gas porosity and closes it up cosmetically. The part passes visual, goes to anodize or coating, and the pores open right back up — now with process chemistry inside them.
- Scratches and tool marks that were never removed, just covered.
- Laps and folds — smeared metal isn't bonded to the metal beneath it. It's a flap waiting to lift.
- Embedded contamination — grit and debris sealed under the skin.
The cluster's recurring theme shows up again here: the part that looks finished and isn't. A smeared burr on stainless looks deburred. Polished heat tint looks clean. Rust in a pit looks removed. And smeared aluminum looks like a finish — right up until something reveals it.
How to Stop It
Same mechanism as loading, so the same levers: slow down, ease off, sharp abrasive, silicon carbide, keep it moving. Smearing means the abrasive is pushing metal rather than cutting it — which means it's dull, loaded, overheated, or being pressed too hard. Fix the cut and the smear stops.
And on castings especially: if you can't tell whether you're cutting or smearing, you're smearing. A cutting abrasive throws chips. A smearing one just makes the surface shinier.
"Discoloration" Is Four Different Problems
Gray streaks, dark patches, dull zones, black smudges — people call all of it discoloration and reach for the same fix. They have different causes and different answers.
| Looks Like | Actually Is | Cause & Fix |
|---|---|---|
| Gray / dark smudging | Smeared aluminum + embedded fines | Metal pushed rather than cut, with its own debris rolled into it. Fix the cut: sharper abrasive, slower speed, less pressure, silicon carbide. |
| Dark spots that won't polish out | Embedded abrasive grain | Grain fractured off and got pressed into soft aluminum. It's in the surface, not on it. Anodize will show every one. Prevent it — light pressure, quality product, and don't run a broken-down disc. |
| Dark spots + corrosion later | Embedded iron | Steel particles from a shared abrasive, brush, table, or fixture. Aluminum and steel in contact with moisture is a galvanic cell — it corrodes. And it anodizes dark or not at all. Dedicate your aluminum abrasives. |
| Dull, cloudy, uneven sheen | Inconsistent finish, not a stain | Varying pressure, direction, or abrasive condition across the surface. Nothing is on the metal — the scratch pattern just isn't uniform. Fix direction and consistency, not fineness. |
↔ Scroll table horizontally on mobile
The Contamination Rule — Same as Stainless, Different Reason
Never use an abrasive on aluminum that has touched carbon steel. On stainless, embedded iron rusts and stains the part. On aluminum, it does that — and sets up a galvanic couple, because aluminum and steel are far apart electrochemically. Add moisture and the aluminum corrodes preferentially, around every particle.
Dedicate abrasives by material. Label them. Separate benches where you can. It's the same discipline the whole shop needs and the same failure that ships without anyone noticing.
Which Aluminum? It Matters More Than You Think
"Aluminum" covers materials that behave very differently under an abrasive. The softest ones are the gummiest. And cast alloys with high silicon content flip the problem entirely — they're abrasive, not gummy.
| Series | Typical Use | Behavior | Finishing Note |
|---|---|---|---|
| 1xxx | Commercially pure — electrical, foil, chemical | Gummiest | The worst loader. Soft, ductile, nothing alloyed in to help it chip. Light pressure, low speed, stearated SiC, and patience. |
| 2xxx | Al-Cu — aerospace structure | Moderate | Cuts better than pure. Often clad in pure aluminum, though — and the cladding is thin and gummy. Go through it and you've scrapped the corrosion protection. |
| 3xxx | Al-Mn — sheet, roofing, trim | Gummy | Sheet work, so distortion is as much a risk as loading. Keep heat out of it. |
| 5xxx | Al-Mg — marine, pressure vessels, fabrication | Gummy, work-hardens | Common in weld fabrication and one of the more difficult. It work-hardens as well as smears — the one aluminum where the stainless instincts partly apply. |
| 6xxx | Al-Mg-Si — 6061, 6063. Extrusion, general | Manageable | The workhorse and the one you'll meet most. Finishes reasonably with correct technique. Anodizes well and predictably. |
| 7xxx | Al-Zn — 7075, aerospace | Best of the wrought | Hardest wrought aluminum, so it chips rather than flows. The easiest to finish — and the least forgiving of heat, since properties depend on temper. |
| Cast (high-Si) | A356, 380 — housings, manifolds | Abrasive, not gummy | The inversion. Silicon particles are hard — they dull abrasive fast rather than loading it. Less smearing, shorter disc life, and porosity underneath waiting to be exposed. Different problem, different answer. |
↔ Scroll table horizontally on mobile
And They Don't Anodize the Same
Different alloys take anodize differently — different shade, different clarity, different consistency. If an assembly mixes alloys and the customer expects a uniform anodized appearance across it, that's a design problem you cannot finish your way out of. Raise it before the parts are made, not after they come back from the tank.
The Method, Start to Finish
-
Dedicate everything before you start
Aluminum-only abrasives, brushes, filesNot a step so much as a precondition. Anything that touched steel is a contamination source, and on aluminum contamination is galvanic as well as cosmetic. Label and separate.
-
Degrease, then abrade — never the reverse
Solvent firstAbrading an oily surface drives contamination in and packs the disc with a paste of oil and aluminum. Solvent comes off with solvent.
-
Remove stock, if there's stock to remove
Flap disc · ceramic or zirconia · 60–80 · open coatWeld bead or real material only. Open coat is not negotiable. Keep the tool moving, moderate pressure, and back the speed off from what you'd run on steel.
-
Blend and refine
Stearated aluminum oxide · 80–120 → 180–220Stearate is doing real work here — it's a barrier against the welding mechanism, not a marketing feature. Step down one grit at a time; skipping leaves ghosting that anodize will find.
-
Condition and finish
Non-woven · silicon carbide · Medium → Very FineSilicon carbide for the brighter, crisper finish aluminum wants, and it cuts cool at light pressure. Straight-line passes, consistent pressure, match the grain of the adjacent surface. Non-woven conforms and won't gouge — useful on soft metal that gouges easily.
-
Polish, if the spec calls for it
Silicon carbide · 320 → 600+ · wet above ~400Wet sanding flushes swarf away from the interface, which is exactly what stops the welding cycle. It also prevents the pigtail scratches that dry sanding drags around on soft metal.
-
Clean thoroughly before coating or anodize
Per the coater's requirementsEvery particle left on the surface is a defect the process will find and magnify. If the part is going out for anodize, the coater's prep requirements govern — ask before you finish, not after.
Anodizing Is a Lie Detector
If the part is going to anodize, understand what you're walking into: the process is essentially transparent and it grows out of the substrate. It doesn't cover the surface. It converts it.
Which means anodize doesn't hide your finishing. It magnifies it, and then makes it permanent.
- Smeared metal anodizes differently from sound metal. It shows up as streaks and patches that were invisible on bare aluminum.
- Embedded abrasive grain becomes a visible spot. Every one of them.
- Embedded iron anodizes dark, or refuses to anodize at all, leaving a mark.
- Scratches get more visible, not less. The scratch you can just barely see now is the scratch the customer will complain about.
- Inconsistent finish becomes inconsistent color. Uneven scratch pattern reads as uneven shade.
- Grain direction shows clearly. Whatever direction you worked in is the direction the customer sees.
- Sealed-over porosity opens up — and now there's process chemistry in it.
The Useful Reframe
Treat anodize as a test you've already taken. Nothing you can do at the tank fixes what happened at the bench — stripping and re-anodizing removes material and rarely improves the substrate underneath. If a part has to anodize well, the finishing standard is set by that, not by what looks acceptable in the shop under fluorescent light.
And test on scrap. Same alloy, same finish, same anodizer. Every time it matters.
Aluminum Dust Is Not Steel Dust
This One Is Genuinely Dangerous
Fine aluminum powder is a combustible dust, and accumulations present a fire and explosion hazard. This is not a theoretical concern — it's why aluminum finishing has its own dust handling requirements, and it's the most under-appreciated hazard in a mixed-material shop.
Never collect aluminum dust in a collector that also handles ferrous grinding. Steel grinding throws sparks. Aluminum dust is fuel. Putting them in the same collector puts an ignition source and a fuel source in the same box.
Wet collection is not automatically the safe answer either — aluminum fines in contact with water can generate hydrogen, which introduces a different hazard into the same vessel. Aluminum dust in contact with rust can also react energetically given enough energy input.
NFPA 484 covers combustible metals, and your jurisdiction's requirements apply. If you're grinding aluminum in volume, this belongs in your safety program with a dedicated system — not in a general dust cabinet. Talk to someone who does this for a living.
Alongside that: eye and face protection, respiratory protection appropriate to the material, and verify any abrasive's maximum safe speed against your tool's rated speed before mounting.
Six Ways Aluminum Finishing Goes Wrong
- Speeding up when it stops cutting. The instinct from steel, and it's exactly backwards. Surface speed is friction heat, friction heat is the welding mechanism. Slow down.
- Leaning on it. More pressure doesn't buy cut rate on aluminum — it buys a welded grain and a smeared part.
- Running closed coat, non-stearated product. It'll load solid in seconds and you'll blame the disc. Open coat, stearated, silicon carbide where you can.
- Cleaning aluminum, then walking away. The oxide reforms within minutes. If you're prepping to weld, clean it and weld it — don't clean a batch and break for lunch.
- Using yesterday's steel abrasive. Embedded iron corrodes aluminum galvanically and anodizes dark. Same discipline as stainless, worse consequences.
- Judging a casting by its polished surface. Smeared aluminum closes porosity beautifully. Anodize opens it back up in front of your customer.
Answers, Short Version
Why does my sanding disc load up instantly on aluminum?
Because it isn't clogging — it's welding. Friction heat softens aluminum at the contact point and it bonds to the grain. Once a grain is capped in aluminum, it can't cut, so it rubs, which makes more heat, which welds on more aluminum. Slow the tool down, ease off the pressure, and use open-coat stearated product or silicon carbide.
What's the best abrasive for aluminum?
Open coat, stearated, and silicon carbide where the operation allows — SiC is sharper and cuts at lower pressure, which means less friction and less heat. Stearate is a dry lubricant barrier against the welding mechanism. For stock removal, ceramic or zirconia flap discs in open coat, run slower than you would on steel.
Should I speed up or slow down on aluminum?
Slow down — and this is the one people get wrong most. Surface speed drives friction heat, and friction heat is what welds aluminum to your abrasive. The instinct from steel is to speed up when a disc stops cutting. On aluminum that accelerates exactly the failure you're trying to escape.
Can I clean a loaded aluminum disc and reuse it?
Rarely with much success. Packed swarf can be cleared, but aluminum welded to the grain isn't sitting in the pores — it's bonded to the cutting edge. Once the grain is capped it has no edge left at any pressure. The disc is spent whether it looks it or not.
Why does my aluminum look gray or smudged after sanding?
You're smearing rather than cutting — pushing metal across the surface with its own fines rolled into it. The abrasive is dull, loaded, overheating, or being pressed too hard. Sharper abrasive, slower speed, lighter pressure. If it's throwing chips it's cutting; if it's just getting shinier, it's smearing.
Why did my part look fine until it was anodized?
Because anodize is transparent and grows out of the substrate — it magnifies everything underneath instead of covering it. Smeared metal anodizes differently, embedded grain and iron show as spots, scratches get more visible, and inconsistent finish reads as inconsistent color. Nothing at the tank fixes what happened at the bench.
Can I use the same abrasives on aluminum and steel?
No. Embedded steel particles in aluminum set up a galvanic couple — aluminum corrodes preferentially around each particle when moisture is present — and they anodize dark or not at all. Dedicate abrasives by material and keep them physically separate.
Is aluminum dust dangerous?
Yes. Fine aluminum powder is a combustible dust and accumulations are a fire and explosion hazard. Critically, never collect aluminum dust in a collector that also handles ferrous grinding — steel sparks plus aluminum dust puts ignition and fuel in the same box. Wet collection introduces hydrogen concerns of its own. NFPA 484 covers combustible metals; treat this as a system design question, not a housekeeping one.
