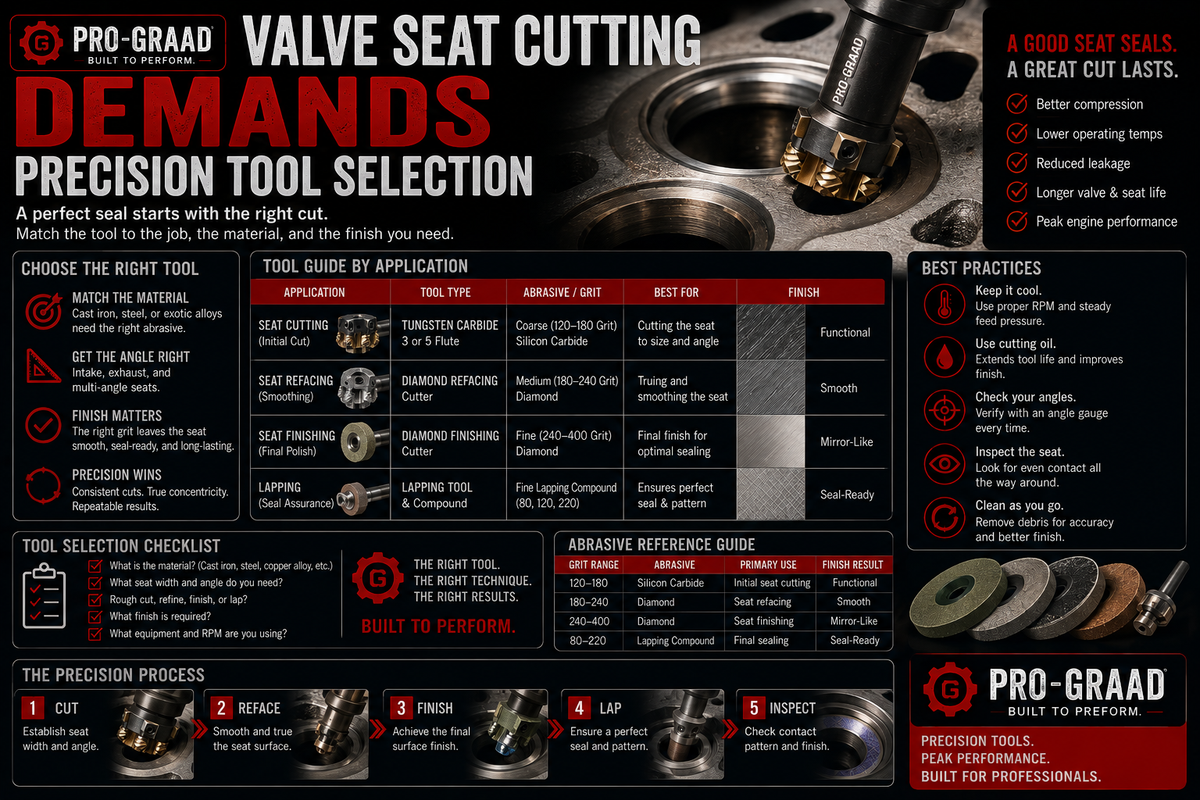

Valve Seat Cutting Demands Precision Tool Selection

Every cylinder head depends on one deceptively small sealing surface: the valve seat. A valve seat cutter is a specialized tool used in automotive engine repair, designed to cut the valve seat in the cylinder head of an engine at a specific angle, ensuring the valve can seal properly against the cylinder head. When that seal fails, your engine suffers immediately. A single valve that is leaking compression can cause a significant drop in power, up to 25 percent in a four-cylinder engine. Therefore, if you're hearing rough idle, misfires, or unexplained power loss, the first system worth investigating is your valve seats.

The challenge for most people, whether you're a first-time home mechanic, a small-shop engine rebuilder, or an automotive student, is that valve seat repair involves a wide range of tools, angles, and material choices. Selecting the wrong cutter or cutting the wrong angle can leave you worse off than before you started. This guide breaks down every decision in plain language so you can move forward with confidence.

Key Takeaways

• Seat angle selection defines power output: Out of a 53 cfm airflow gain, 25 cfm came from changes made to the valve seat angles alone, showing how critical valve seat angles are for maximizing airflow and power, according to engine specialist Mondello at Out of a 53 cfm airflow gain, 25. Match your angle selection to your application before you pick up a cutter.

• Concentricity is the most common failure point: If valve seats are not concentric to the valve guides, the valves will not seal effectively, and non-concentric valves affect proper heat transfer from the valve to the valve seat while putting undue stress on the valve head itself, as reported by If valve seats are not concentric. Always use a correctly sized pilot.

• Carbide outperforms high-speed steel for seat work: Exceptional hardness and wear resistance make carbide tools suitable for machining abrasive materials, and carbide tools maintain sharpness for longer periods, resulting in extended tool life and reduced downtime, per Exceptional hardness and wear. Invest in carbide cutters for any head you intend to run long-term.

• Lapping compound alone cannot save a damaged seat: Use a valve seat cutter to fix the seat surface if your valve seats are damaged, lapping compound doesn't remove nearly enough material to repair damaged valve seats, according to Diesel Doctor's engine rebuilding guide. If the surface has recession or pitting, you need a cutter first.

• Pilot-to-guide clearance must be tight: The pilot-to-guide clearance should be 0.0002 inches or less for accurate machining, according to The pilot-to-guide clearance. Loose pilots create off-center seats that leak under load.

Quick-Start Prioritization Framework

Strategy	Best For	Effort Level	Time to Results
Hand cutter set (carbide)	Home mechanics, small engines, occasional jobs	Low	Hours
Neway-style replaceable-blade cutters	General automotive shops, multi-make work	Medium	Hours
Multi-angle form cutter with machine	High-volume shops, performance builds	Medium-High	Days (setup)
CNC seat-and-guide machine	Professional rebuilders, OEM-spec work	High	Days (setup)
Valve seat insert replacement	Severely receded or cracked seats	High	Days

Start here if you're:

• A beginner or DIY home mechanic: A hand carbide cutter set with a good pilot is the lowest-cost entry point. Focus on getting the pilot size right first, then practice light, even passes.
• A general automotive shop: A Neway-style blade system mounted on a drill-press-style machine covers most passenger car and light truck work efficiently.
• A performance builder or professional rebuilder: Invest in a seat-and-guide machine with a dead pilot design and pre-formed carbide blades that cut multiple angles in one pass. The upfront cost is recovered quickly through reduced rework.

What a Valve Seat Actually Does

Understanding the job the seat performs makes every tool selection decision easier. A valve seat is the surface that an exhaust valve rests on when the valve is closed during the combustion process, and alongside the valves it helps seal off the combustion chamber in the cylinder head while preventing valve impact damage by absorbing some of the heat from the valve, as explained by Foxwood Diesel's valve seat cutting guide.

The seat does three things simultaneously: it seals combustion pressure, transfers heat from the valve into the cooler cylinder head, and acts as a physical stop that limits how far the valve can travel. When any of these functions degrades, the whole engine suffers.

Signs Your Seats Need Attention

Common symptoms of worn or damaged valve seats include rough idle or poor acceleration, engine misfires when the seats are not sealing properly, excessive exhaust emissions as unburned fuel escapes past damaged seats, and reduced power while driving, especially under acceleration, caused by compression loss. These warning signs come from Allied Motor Parts' cylinder head guide.

Pro Tip: Before removing any cylinder head for valve seat repair, run a compression test across all cylinders. If one or more cylinders read 15-20% lower than others, this strongly suggests a valve sealing issue. Follow that immediately with a leak-down test to confirm the problem is at the seat rather than at the piston rings. Skipping this step costs time and money.

When Valve Seat Repair Becomes Valve Seat Replacement

Rather than replacing the valve seats entirely, burnt or worn valve seats can be reconditioned and restored to normal working condition through cutting or grinding. However, there are limits. Valve seat replacement is required if the cylinder head was warped and needed to be straightened before resurfacing, if an aluminum head was cleaned by heating (the seats will need replacing), or if the valve's mating surface has receded below factory specifications, per Valve seat replacement is required. In practice, seats can be cut two or three times before they reach minimum depth. Know where your seat sits on that scale before choosing repair over replacement.

Understanding Valve Seat Angles

Angles are the heart of valve seat cutting. Get them wrong, and you either kill sealing pressure or strangle airflow. Typically, a valve seat has a profile with three different angles, a throat angle, a valve seat angle, and a top angle, and a "three-angle" cutting blade or bit is used to machine a valve seat where each angle corresponds to one of those seat angles to be machined, according to USPTO machining patent documentation.

The 45-Degree Standard and When to Deviate

The 45-degree angle is the workhorse angle; it provides a good balance between sealing effectiveness and airflow, and most passenger cars use a 45-degree angle for both the valve face and seat, according to Valve Refacer's valve angle guide. This is the safe default for any standard street engine. Start here unless you have a specific reason to deviate.

Racers have long known that valve-seat angles steeper than the traditional 45-degree cut will improve airflow characteristics into the cylinder and boost power. For performance applications, Engine Labs' valve seat angle analysis describes how steeper angles at 50 or 55 degrees are increasingly common in high-output engines.

Three-Angle vs. Multi-Angle Valve Jobs

Out of a 53 cfm airflow gain, 25 valve job is still better than a single 45-degree cut on the valve seats, but it cannot come close to what is possible by optimizing the valve seat profile with additional angles, explains Out of a 53 cfm airflow gain, 25. In real terms: a basic three-angle job raises performance and is sufficient for most rebuilt street engines. Multi-angle profiling is a worthwhile investment only when you're building for maximum output or flow-bench testing your results.

Pro Tip: For most street engine valve seat repair work, a 30-45-60 degree three-angle job is the practical sweet spot. It improves on a single-angle cut without requiring the specialized CNC equipment needed for five-angle profiles.

Choosing the Right Cutting Tool

This is where most beginners lose their way. The cutter you select must match the seat material, the valve diameter, the cylinder head type, and the angle profile you're targeting. There is no universal tool that handles all cases equally well.

Carbide vs. High-Speed Steel

For valve seat cutting specifically, carbide wins in almost every production scenario. Carbide tooling comes in a variety of forms including carbide counter-bore cutters, valve guide pilots, core drills, core reamers, and single or multi-angle cutters, and carbide is the most affordable material that provides long life, holds size, and can be formed into a variety of shapes while remaining readily available, according to Carbide tooling comes in a variety. The tradeoff is brittleness. Carbide tooling comes in a variety brittle than high-speed steel. Drop a carbide pilot on a concrete floor once, and it's finished. Handle carbide tooling with care.

High-speed steel cutters are a reasonable choice for occasional use on soft seat materials, where their greater toughness and lower entry cost make sense. High-speed steel is known for its high working hardness and excellent toughness, and can excel in situations where a rigid setup cannot be obtained and where there is potential for excessive tool holder overhang, per Harvey Performance's substrate selection guide. For hardened seat inserts or high-volume work, move to carbide.

Pilots: The Component Most Often Ignored

In my experience, more seat jobs go wrong because of a loose or incorrect pilot than because of a bad cutter. With modern engines placing as many as five valves per cylinder and stem diameters as small as 4.0mm, the only way to achieve seat concentricity is to use a solid carbide pilot, a high-speed steel pilot is actually bent over by cutting pressure and can flex by as much as 0.002 inches, as noted by Carbide tooling comes in a variety. Use the closest available pilot size to the guide bore, tight fit translates directly to concentric seats.

SERDI offers a range of tungsten carbide pilots from 3.5 mm to 20 mm in diameter in 0.01 mm increments, and their pilots are ground mounted between centers to ensure the best concentricity, per SERDI's valve seat tooling page. Precision-ground pilots in tight increments are worth the extra investment for professional shops.

Hand Cutters vs. Machine-Driven Systems

Hand cutters are great entry-level seat cutters because they are turned by hand with no expensive machines required and produce an excellent finish, but the disadvantages include needing multiple cutters to complete a seat, the risk of applying uneven pressure, and that hand-cutting becomes tedious when machining a large number of seats, per Goodson Tools' valve seat guide. For low-volume, single-head repairs, hand cutters are a practical and cost-effective choice.

For production shops, machine-driven systems are the better investment. A valve seat cutting machine is the most accurate and efficient tool for cutting valve seats, and as the valve seat has different angles, hand cutters will struggle to achieve the precision needed to ensure each angle is accurately cut, according to Foxwood Diesel's cutting machine overview. A machine removes operator variance from the process, the most unpredictable variable in any seat job.

Step-by-Step Valve Seat Cutting Process

I've found that breaking the process into clearly sequenced steps prevents the most common mistakes. Follow this sequence each time.

Step 1: Inspect and Measure Before Cutting Anything

Remove the cylinder head and clean the head thoroughly to remove grease and debris, then inspect valve seats for wear, damage, or pitting. Use a dial indicator to check runout and a depth gauge to compare the current seat depth to the manufacturer's minimum specification. If you skip this step, you may cut a seat that is already at minimum depth, forcing a full seat replacement that could have been identified before any material was removed.

Step 2: Select and Fit the Correct Pilot

Match your pilot to the valve guide bore. The valve-and-seat machine must hold tight tolerances, 0.0002 inches at the pilot, and an old machine with too much slop will not be able to seal the valves in today's engines, per The valve-and-seat machine must. Apply a high-pressure lubricant to the pilot and verify it seats smoothly without lateral play.

Step 3: Cut in Light Passes

Use a seat cutter or rotary grinding tool to carefully cut the worn or damaged seat, cutting in multiple light passes to achieve the desired inclination and smoothness. Never try to remove all material in one heavy pass. Aggressive cuts generate heat, cause chatter, and can produce a surface finish that won't seal. The pilot-to-guide clearance cutting a seat, the problem may be too much play between the pilot and valve guide, the speed of the cutter, or the machine being out of level, and using a coolant when cutting hard seats will reduce chatter, as noted by The pilot-to-guide clearance.

Step 4: Verify the Result

How well the valves and seats are mating after both have been machined can be easily checked using a hand pump to pull vacuum on each of the head ports with the valves in place, if there is full contact between the valve face and seat, the port should hold vacuum, but if you cannot pull vacuum, the valve and seat are not concentric or are not making full contact all the way around. Fix every seat that fails vacuum before reassembling the engine.

Pro Tip: Mark the valve seat with a thin coat of layout dye (Prussian blue) before fitting the valve. Turn the valve a quarter rotation under light pressure, then remove it. A perfect seat leaves a uniform ring of dye transfer across the full circumference. Any gap or skip in that ring means the seat needs one more pass.

Common Valve Seat Cutting Mistakes to Avoid

Using Lapping Compound as a Substitute for Cutting

Use a valve seat cutter to restore the seat surface if your valve seats are damaged, many people believe that using a valve lapping compound will fix the problem, but the valve lapping compound does not remove enough material to repair damaged valve seats, according to Adrenaline Diesel's engine-building guide. Lapping is a final polish, not a repair method.

Skipping Machine Leveling

Some of the most overlooked valve seat installation mistakes include improper seat angle or concentricity, using the wrong seat material for the application, and inadequate cleaning of the seating surface, and the biggest way to avoid mistakes is by making sure your guide is lined up and seats are concentric and straight, as many people will not level their machines 100 percent, which means the cut hole could end up off-center by 0.001 to 0.002 inches, per Some of the most overlooked valve. Level the machine to the guide axis every single time, not just during initial setup.

Reusing a Worn or Chipped Pilot

A worn pilot creates an eccentric cutter path. Chatter on the valve seat is most commonly due to poor tooling, including a loose or worn pilot, an incorrectly sharpened or worn cutting edge, or a loosely clamped workpiece, as explained by Engine Action's valve machining guide. Inspect pilots before every use and replace them at the first sign of wear. The cost of a replacement pilot is small compared to the cost of machining a seat twice.

Frequently Asked Questions

What is valve seat cutting and why is it necessary?

Valve seat cutters are tools used in the automotive industry to create a smooth, precisely machined surface on the valve seat of an engine, made from hardened steel using rotating cutters to achieve the perfect finish. Cutting is necessary when the original seating surface wears, pits, or recedes, any of which allows combustion pressure to leak past the valve and reduces engine power.

How do I know if I should cut or fully replace my valve seats?

Valve seat replacement is required if the cylinder head was warped and straightened before resurfacing, if an aluminum head was cleaned by heating, or if the valve's mating surface has receded below factory specifications or if machining the head would cause the seat to fall below factory specs. When recession is moderate and depth specs allow it, cutting and reconditioning is the cost-effective choice.

What cutting angle should I use for a standard passenger car engine?

The 45-degree angle is the workhorse angle; it provides a good balance between sealing effectiveness and airflow, and most passenger cars use a 45-degree angle for both the valve face and seat. For a standard three-angle valve job on a street engine, use a 30-45-60 degree combination. Match the contact angle to the manufacturer's specification before deviating from that baseline.

What causes chatter marks during valve seat cutting?

The valve-and-seat machine must cutting a seat, the problem may be too much play between the pilot and valve guide, the cutter speed, or the machine may need to be leveled, and using a coolant when cutting hard seats helps reduce chatter, per The valve-and-seat machine must. Check pilot fit first, then machine leveling, and ensure your cutter blade is sharp rather than worn.

Can I use a hand cutter or do I need a machine?

Hand cutters are great "entry level" seat cutters because they are turned by hand with no expensive machines or drivers required and produce an excellent finish. However, for multi-valve heads, tight tolerances, or high-volume work, Foxwood Diesel's analysis confirms that a machine-driven system delivers significantly better consistency and concentricity control than hand cutting alone.

The Right Tools Lead to the Right Result

Valve seat cutting rewards careful preparation and punishes shortcuts. The angle you select, the pilot you fit, the material of your cutter, and the care you take leveling your machine all feed directly into whether the finished seat holds compression or leaks under load. In my experience, the shops and home mechanics who get consistent results treat tool selection as seriously as they treat technique.

For those getting started with valve seat repair, Pro-Graad offers tooling and technical resources designed to support precision seat work across a range of engine types. Matching the right tool to the job is not a secondary consideration; it is the job itself.
