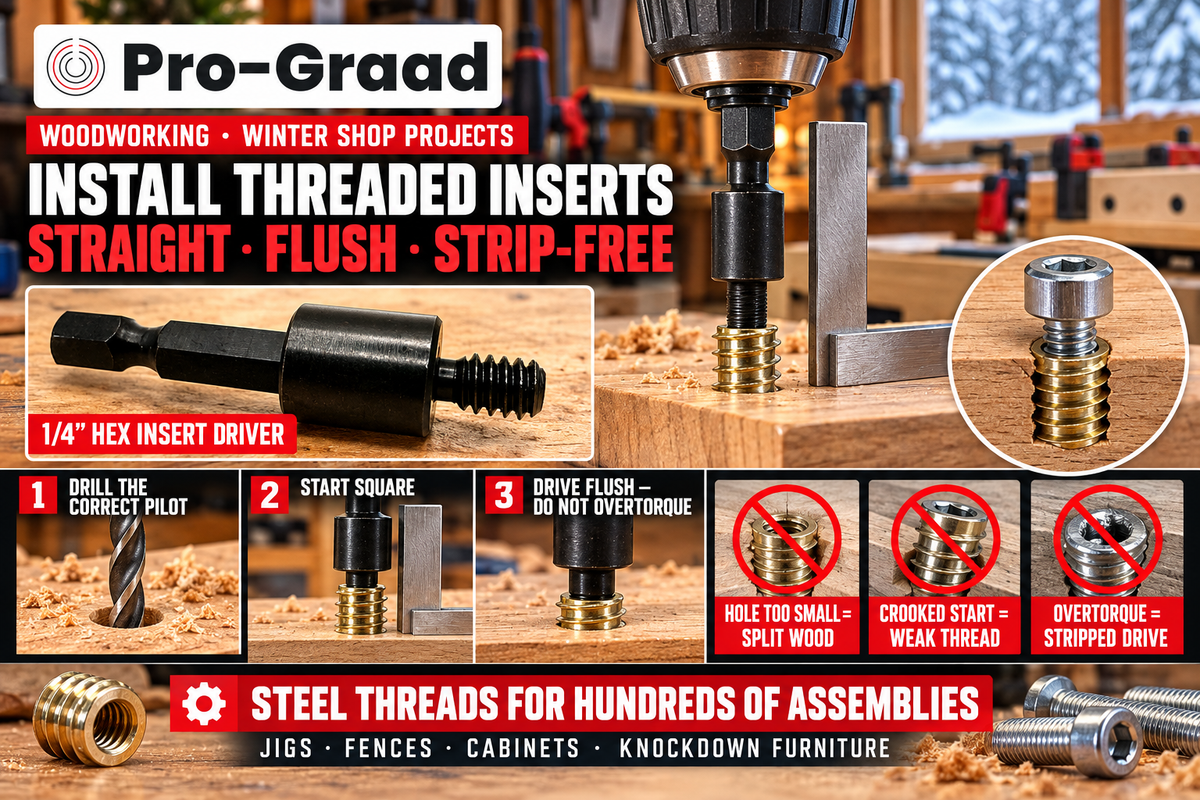

How to Install Threaded Inserts in Wood: Straight, Flush, and Strip-Free
A threaded insert is only as good as the hole it goes into and how square it went in. Get both right and you have a machine thread in wood that survives hundreds of assemblies.
Winter is jig season. The shop is warm, outdoor work is done, and the list fills up with hold-downs, router table fences, shop cabinets, knockdown benches and furniture that has to come apart to get through a doorway. Every one of those projects has a joint that gets bolted and unbolted, and wood screws do not survive that. After a handful of cycles the threads in the wood are gone.
A 1/4"-20 threaded insert fixes that by giving you a steel, brass or stainless machine thread anchored in the wood. The insert does the wearing, not the wood. Where installs go wrong is almost always one of three things: the wrong pilot hole, an insert that went in crooked, or a drive socket or slot that stripped halfway in. This guide covers all three.
01Pick the Right Insert for the Wood
Every 1/4"-20 insert has the same internal thread. What changes is the external thread, how it is driven, and what it is made of.
| Insert Type | How It Drives | Best In | Watch For |
|---|---|---|---|
| Knife-thread (self-tapping) | Threaded driver or screwdriver slot | Hardwood, plywood | Needs an accurate pilot. Torque climbs fast in dense species like maple and oak. |
| Hex-drive (flanged) | Hex key or threaded driver | Hardwood, plywood, MDF with glue | Zinc-alloy versions can crack or round out the hex socket under load. |
| Slotted screw-in | Flat screwdriver or threaded driver | Softwood, hardwood | Screwdrivers cam out of the slot and gouge the surface around the hole. |
| Press-in / barbed | Mallet or arbor press | Softwood, light-duty panels | Low pull-out strength. Not for joints that get loaded and cycled. |
Material matters too. Steel and stainless inserts take the most torque and the most bolt cycles. Brass is softer, resists corrosion, and is fine for light-duty fixtures, but over-torque the bolt and the threads go first. Zinc alloy shows up in a lot of bulk hex-drive packs; it works, but it is the most brittle of the three.
Why a threaded driver beats a hex key or screwdriver: a threaded driver like the Pro-Graad DT-4 drives the insert through its own internal 1/4"-20 threads. The load is spread across every engaged thread instead of six small hex flats or one slot, so there is nothing to round out or cam out of. It also means one tool drives every 1/4"-20 insert in the drawer, regardless of whether it has a slot, a hex, or neither.
02Pilot Hole: Diameter, Depth and Prep
The pilot hole decides whether the insert bites cleanly, spins loose, or splits the board. There is no universal number, because insert outside diameters and thread profiles vary between manufacturers.
Diameter
- Start with the insert maker's chart. Most 1/4"-20 knife-thread and hex-drive inserts call for a pilot somewhere in the 23/64" to 25/64" range.
- Dense hardwood takes the larger end of the range, softwood the smaller end. Hard maple with an undersized pilot is how boards split and inserts stall halfway in.
- Test in a scrap of the same board. If the insert needs heavy force to start or the wood cracks, open the hole up one size. If it spins without biting, the hole is too big.
Depth
Drill insert length + 1/8". The extra depth gives displaced fibers somewhere to go and lets the bolt run fully through the insert without bottoming out against wood. Use the drill press depth stop or a tape flag on the bit.
Prep the mouth of the hole
Give the top edge a light chamfer with a countersink. Knife-thread inserts lift fibers as they cut in, and a flanged insert will not sit flush on a raised ring of torn grain. A brad-point bit also leaves a cleaner entry than a standard twist bit.
Edge distance: keep the center of the insert at least two insert diameters from any edge, and clamp across the grain on narrow stock while you drive. End grain holds far less than face grain; if the insert has to go into end grain, plan on setting it in epoxy.
03Install on a Drill Press (Straightest Method)
The drill press is not there for power. It is there to hold the insert dead square to the surface while you turn it. That one thing eliminates the most common install failure.
- Chuck the DT-4 by its 1/4" hex shank in the drill press chuck. Unplug the press or lock out the switch. You will be turning the spindle by hand.
- Thread the insert onto the driver, cutting or tapered end facing out, until it is fully seated. Every internal thread should be engaged. An insert hanging on two threads will strip its own threads before it is halfway in.
- Clamp the workpiece with the pilot hole centered directly under the insert. Bring the quill down until the insert just touches the chamfer.
- Turn the chuck clockwise by hand while holding light, steady pressure on the quill feed. Let the insert pull itself in; do not force it down.
- Stop when the insert is flush or about 1/32" below the surface. An insert left proud will hold mating parts off the face.
- Turn the chuck counterclockwise to unthread the driver from the installed insert, and raise the quill.
04Install With a Drill/Driver (Large Panels and Assembled Work)
When the workpiece will not fit under the press, the DT-4's 1/4" hex shank drops straight into the quick-change chuck of a drill/driver or a standard three-jaw chuck.
- Low gear, low clutch. Set the drill to its low-speed range and start the clutch on a low setting. Step the clutch up until it drives without slipping. The clutch is your torque limit; it stops the drill before the insert strips the bore.
- Use a guide block. On the drill press, bore a hole through a scrap of hardwood just larger than the insert's outside diameter. Clamp that block over the pilot hole and drive the insert through it. The block keeps the insert square the same way the press does.
- No guide block? Sight the driver from two directions 90 degrees apart before the insert bites. Once the first thread cuts in crooked, the rest will follow it.
- Reverse to release. Run the drill in reverse at low speed to back the driver out of the seated insert.
What about an impact driver? The hex shank fits, but an impact driver hammers the insert as it turns. In softwood that can strip the bore; in hardwood near an edge it can split the board. A drill/driver with a clutch gives far more control. If an impact is all you have, feather the trigger and stop the moment the insert is flush.
05What Goes Wrong, and the Fix
| Symptom | Cause | Fix |
|---|---|---|
| Insert went in crooked | Hand-started without a guide | Back it out, drill the hole oversize, glue in a hardwood plug, re-drill the pilot and install on the press or through a guide block. |
| Insert spins and will not bite | Pilot oversized, or very soft wood | Set the insert in epoxy. Keep epoxy off the internal threads. |
| Wood splits | Pilot too small, too close to an edge, or no clamp across the grain | Open the pilot one size, move the hole inboard, and clamp across the grain while driving. |
| Insert follows the driver back out | Bore is not gripping the insert | Re-seat it in epoxy. A little paste wax on the driver threads also helps it release cleanly. |
| Hex socket rounded out | Driving a zinc hex-drive insert with a hex key under high torque | Drive through the internal threads with a threaded driver instead of the socket. |
| Bolt will not thread in | Threads distorted by over-torque, or glue in the threads | Chase the insert with a 1/4"-20 tap. Next time, drive with a clutch and keep adhesive on the outside only. |
06Winter Shop Projects Worth Doing With Inserts
- Jigs and fixtures: hold-down clamps, adjustable stops, and star knobs on T-track all run 1/4"-20 hardware.
- Router table and fence accessories: sacrificial fences, featherboards and dust hoods that come off and go back on all season.
- Shop cabinets and carts: leveling feet and removable panels.
- Knockdown furniture: light-duty table legs, shelving and benches that need to break down for moving. For heavy structural joints, step up to a larger thread size.
- Light and camera mounts: 1/4"-20 is the standard tripod thread, so an insert turns any shop fixture into a mount for a work light or a camera.
Mind the winter air. A heated shop in January is dry, and lumber brought in from a cold garage or an outbuilding needs time to acclimate before you drill. Pilot holes drilled in wood that is still moving will not stay the size you drilled them. Epoxy also cures slowly in a cold shop; check the adhesive's minimum working temperature before setting inserts in an unheated space.
The Driver
Pro-Graad DT-4 Threaded Insert Driver, 1/4"-20, 1/4" Hex Shank
Fully threaded 1/4"-20 mandrel drives inserts through their internal threads. Fits drill presses, drill/drivers and quick-change chucks. Works with knife-thread, hex-drive and slotted 1/4"-20 inserts in brass, steel or stainless.
FAQ
What size hole do I drill for a 1/4-20 threaded insert?
Most 1/4-20 knife-thread and hex-drive inserts call for a pilot between 23/64 inch and 25/64 inch. Use the larger end of the range in dense hardwood and the smaller end in softwood, and always confirm with the insert manufacturer's chart and a test hole in scrap from the same board.
How deep should the pilot hole be?
Drill the length of the insert plus about 1/8 inch. The extra depth gives displaced wood fibers somewhere to go and lets the bolt pass fully through the insert without bottoming out.
Can I install threaded inserts without a drill press?
Yes. Chuck a threaded insert driver in a drill/driver set to low speed with the clutch on a low setting, and drive the insert through a guide block bored on a drill press so it goes in square. Without a guide block, sight the driver from two directions before the insert starts to cut.
Do threaded inserts need glue?
Not in hardwood or plywood with a correctly sized pilot. Use epoxy in softwood, MDF, end grain, or a hole that ended up oversized. Keep adhesive on the outside of the insert and out of the internal threads.
Can I use an impact driver to install threaded inserts?
A 1/4 inch hex shank driver will fit an impact driver, but the hammering action can strip the bore in softwood or split hardwood near an edge. A drill/driver with a clutch gives more control. If you do use an impact, feather the trigger and stop as soon as the insert is flush.
Which way does a threaded insert go in?
The tapered or cutting end goes in first, and the flanged, slotted or hex end faces up. Drive it until it is flush with the surface or slightly below it.
Which inserts does the Pro-Graad DT-4 work with?
The DT-4 drives any insert with a 1/4-20 internal thread, including knife-thread, hex-drive and slotted styles in brass, steel or stainless. Because it drives through the internal threads, the insert's slot or hex socket is never loaded.
Wear eye protection when drilling and driving, and clamp the workpiece instead of holding it by hand. Pilot sizes above are typical ranges; the insert manufacturer's specification takes priority. Sanding the finished part before assembly? See the grit selection guide.
