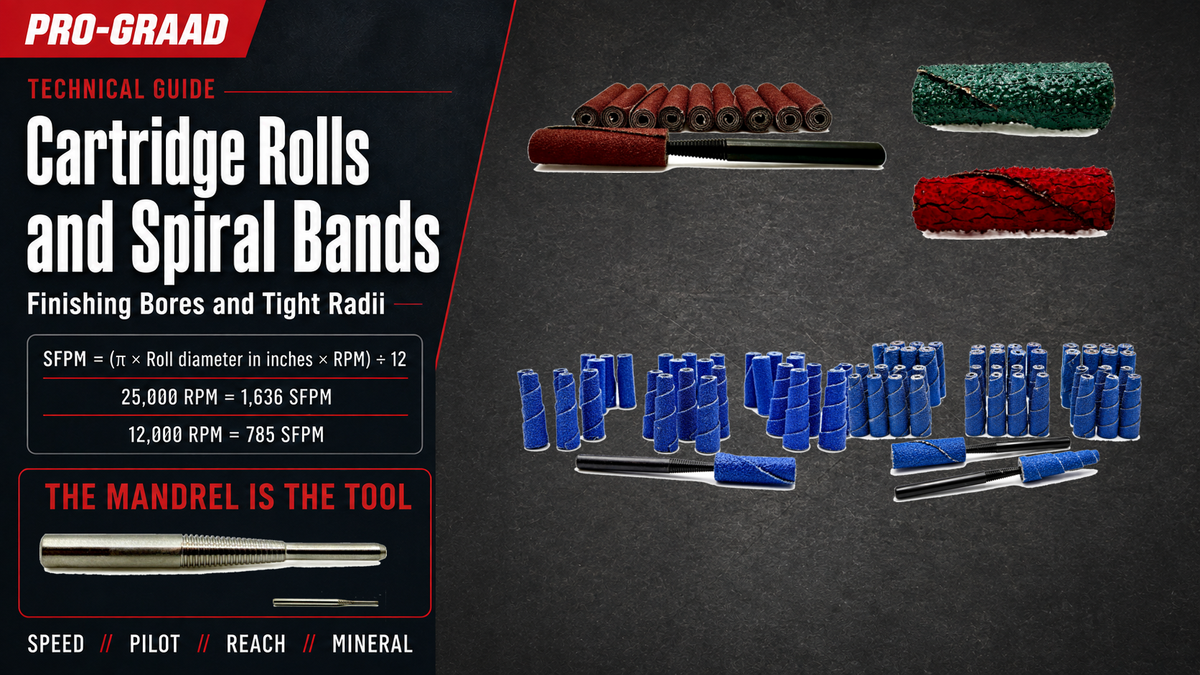

Cartridge Rolls and Spiral Bands: Finishing Bores and Tight Radii
Everything you know about abrasive speed comes from grinding wheels. On a quarter-inch roll, that instinct is backwards, and it is why most people think cartridge rolls do not cut.
The common failure with cartridge rolls is not running them too fast. It is running them too slow. A 1/4" roll on a 25,000 RPM die grinder reaches roughly 1,636 SFPM — about 69% of the surface speed the format is rated to handle. Drop to a 12,000 RPM tool and it falls to 785 SFPM, a third of the ceiling. At that speed the roll burnishes instead of cutting, the operator leans on it to compensate, and the roll collapses.
And the second rule: the mandrel is the tool. Pilot diameter, pilot length, and shank length decide whether the assembly runs true, how far it reaches, and what speed it survives. The roll is the consumable. Most people shop for the roll and take whatever mandrel comes in the box.
Cartridge rolls occupy the work nothing else can reach: intersecting bores, weld roots inside tube, keyways, port runners, cross-drilled holes, the radius where a boss meets a wall. Larger abrasives cannot physically get there, and hand work cannot hold a consistent finish once it does.
The category is badly served by the industry. Most suppliers list cartridge rolls as a line item with a diameter and a grit and nothing else. This page covers the technique: speed, mandrel selection, reach, mineral choice, and the specific jobs where a roll is the wrong answer.
What a cartridge roll actually is
A cartridge roll is abrasive cloth wound in multiple layers around a core, with the layers bonded so the roll holds a cylindrical shape under load. It does not have a hard backing plate or a rigid hub. The structure is the abrasive.
That construction produces the property the format exists for: it renews itself. As the outer wrap dulls and abrades away, it frays and peels back to expose the layer beneath. The roll gets smaller. The cut rate does not fall off the way a coated disc does once its single abrasive layer is spent. You run it down toward the core and the last usable pass cuts much like the first.
Straight, untapered rolls hold their diameter along the full length, which is what you want against a wall or inside a bore where the contact patch has to stay consistent. Tapered and cone shapes concentrate contact toward a point for radii, fillets, and blending into a corner. Both mount on the same mandrels.
On terminology. "Spiral band" usually refers to an abrasive sleeve that slides over a rubber expanding drum, and "spiral roll" or "cartridge roll" to the wound-layer construction that threads onto a tapered mandrel. Kits often mix the terms. What matters when ordering is the mounting method: a sleeve needs a drum, a cartridge roll needs a pilot mandrel, and they are not interchangeable.
The speed problem, and why it runs backwards
Every instinct you have about abrasive speed comes from bonded wheels, where diameter goes up and the safe RPM ceiling comes down, and where the danger is always overspeed. Cartridge rolls invert this at the small end.
Published ratings across a major manufacturer's cartridge roll line hold a constant peripheral speed of about 2,356 SFPM: a 3/8" roll rated 24,000 RPM, a 1/2" rated 18,000, a 1" rated 9,000. Run the arithmetic on each and the surface speed is identical every time. That constant is the format's design point.
Now put three diameters on the same 25,000 RPM pneumatic die grinder and watch what happens.
Surface speed scales directly with diameter, so a single fixed tool speed lands each roll size in a completely different place. This is why "what RPM should I run" has no answer without a diameter attached to it.
Maximum RPM by roll diameter
| Roll diameter | Max RPM at 2,356 SFPM | On a 25,000 RPM die grinder |
|---|---|---|
| 1/4" | 36,000 | Under-speed. Tool is the limit, not the roll. |
| 3/8" | 24,000 | Essentially at the ceiling. Throttle slightly. |
| 1/2" | 18,000 | 39% over. Reduce speed. |
| 3/4" | 12,000 | Well over. Wrong tool speed entirely. |
| 1" | 9,000 | Nearly 3× over. Do not run. |
Read the table as two separate instructions depending on where you are working. At 1/4" and below, open the throttle — you have headroom and the roll will not cut properly without speed. At 1/2" and above, back off — a wide-open die grinder is past the rating.
The mandrel has its own rating and it is frequently the lower one. Published mandrel speeds drop sharply as pilot diameter increases: around 25,000 RPM at a 1/8" pilot, roughly 12,000 at 3/16", and about 9,000 at 1/4". One manufacturer's mandrel instructions direct users to reduce operating speed to 12,000 RPM maximum for rolls 3/4" and larger. Check both numbers. The lower governs. Full method in our abrasive RPM and SFPM reference.
The mandrel is the tool
A cartridge roll mandrel has four dimensions that matter, and confusing any of them produces a failure you will feel immediately.
Shank diameter must match your collet. Pilot diameter must match the roll's arbor hole. Shank length sets how deep you can reach. Overall length drives deflection at speed.
Pilot diameter is a hard compatibility spec
The pilot is the post the roll threads onto, and its diameter must match the roll's arbor hole exactly. A 1/8" arbor roll goes on a 1/8" pilot. Nothing else works — a smaller pilot leaves the roll loose and spinning on the post, a larger one will not enter at all.
All Pro-Graad straight cartridge rolls use a 1/8" arbor hole. If you are ordering mandrels for them, you want a 1/8" pilot. The 3/16" and 1/4" pilot mandrels in our range exist for larger-arbor rolls from other systems and will not fit our straight rolls. Check the arbor hole in your roll before ordering the mandrel, every time.
Threading and rotation
Cartridge rolls on standard tapered mandrels thread onto the pilot, and the direction of tool rotation drives the roll further onto the taper as you work. That is the intended behavior and it is what keeps the roll seated. It also means a roll can wind itself down tight over a long run and take effort to change.
Seat the roll firmly by hand before starting. A roll that is loose on the pilot will wobble, chew its own core, and either wander off the taper or shear at the arbor hole. Both happen at speed, in a bore, where you cannot see it coming.
Reach, and what it costs you
Standard mandrels put the roll roughly two and a half to three and a half inches from the collet. That covers most edge and surface work. It does not get you down an intake runner, into the middle of a long bore, or past a flange into a weld root.
Porting mandrels extend the shank to move the abrasive further out — four, six, eight, ten, and twelve inch overall lengths, all carrying the same 1/8" pilot at the working end. The reach is the entire point and it is genuinely enabling work. It is also not free.
Every inch of added shank lowers the critical speed of the assembly. An unsupported rotating shaft deflects under its own imbalance, and the longer it is, the more it deflects and the sooner it reaches the speed where deflection becomes self-reinforcing whip. A twelve-inch mandrel is not a four-inch mandrel with more length. It is a different dynamic system with a lower usable speed.
Treat the mandrel's own rating as the governing number and step the speed down as length goes up. If the assembly starts to sing, buzz, or walk in the cut, that is the shaft telling you it is above its comfortable speed — reduce throttle before you reduce pressure.
Choosing a length
- Use the shortest mandrel that reaches the work. This is the whole rule. Rigidity, control, finish quality, and safe speed all improve as length comes down.
- Measure from the collet face, not the tool nose. The shank has to clear the tool body and any guard before it starts counting as reach.
- Account for the roll. A 1-1/2" roll on the pilot adds working length past the end of the shank. A shorter mandrel often reaches further than you expect.
- Consider a set rather than one length. Porting and internal work rarely needs one depth. Having four, six, and eight inches on the bench means you use the shortest one that works instead of the only one you own.
Mineral selection
Grit alone does not describe a cartridge roll. The mineral decides cut rate, how the grain breaks down, and how much pressure the job needs — which matters more here than on open surfaces, because pressure is exactly what a small-diameter roll cannot tolerate.
| Mineral | Behavior | Best on |
|---|---|---|
| Aluminum oxide | Grain dulls before it fractures. Predictable, general purpose, forgiving. | Mild steel, wood, general deburring, mixed shop work |
| Zirconia | Self-sharpening under pressure. Fractures to expose new edges rather than dulling. | Stainless, harder alloys, sustained stock removal, weld cleanup |
| Ceramic | Microfracturing grain, highest cut rate and longest life under load. | Hard alloys, production runs, heat-sensitive work |
| Treated cloth | No cutting mineral. Carries compound for burnishing and shine. | Final polish inside bores and recesses after abrasive work |
Zirconia and ceramic need pressure to work, and small rolls cannot take pressure. That is a real tension. The resolution is speed, not force: run the roll near the top of its rated range so cut rate comes from surface speed rather than from load on a quarter-inch column of abrasive. If you find yourself pushing hard on a zirconia roll, the tool is too slow for the diameter, not the roll too fine for the job.
For a shop that does not want to stock the full matrix, a mixed cone and cylinder kit covers the common shapes and grades in one box and lets you find out which combinations you actually reach for before committing to bulk packs.
Where a cartridge roll is the wrong tool
The format has real limits and they are worth knowing before you buy a kit expecting it to solve a problem it cannot.
Reach for a roll
- Irregular, shaped, or interrupted internal surfaces
- Port runners, plenums, and cast passages
- Weld roots and internal weld cleanup in tube and pipe
- Keyways, slots, and cross-drilled intersections
- Fillets and radii where a boss meets a wall
- Blending machining marks in a pocket or recess
Reach for something else
- Round through-bores needing a controlled cross-hatch — that is a flexible hone, not a roll
- Correcting bore geometry, taper, or out-of-round — a rigid hone or a machine shop
- Open flat surfaces — a disc or flap wheel covers ground far faster
- Heavy stock removal on outside edges — a flap disc or grinding wheel
- Anywhere you need a dimensioned, repeatable bore finish to a spec
The bore distinction is the one people get wrong. A cartridge roll follows your hand. It will clean, deburr, and blend inside a bore beautifully, and it will not produce a uniform cross-hatch or hold a diameter, because nothing about it is self-centering. If the job is a cylinder that needs an even, repeatable finish around its full circumference, that is a flexible hone's job — see our cylinder honing guide for cross-hatch angle, RPM and stroke rate. Use the roll for the things the hone cannot reach — the ports, the intersections, the shaped passages.
Common questions
Why does my cartridge roll stop cutting almost immediately?
Usually speed, not the roll. Check the diameter against the table above — a 1/4" roll on a mid-speed tool is running at a third of its design surface speed, which feels like a dull abrasive because the grain is rubbing rather than cutting. Open the throttle before you reach for a coarser grit.
My roll keeps shearing off the mandrel. What am I doing wrong?
Three usual causes. The roll was not seated firmly on the pilot before starting. The pilot diameter does not match the arbor hole. Or you are applying pressure to compensate for insufficient speed, which loads the core in bending until it fails. Check the fit and the speed before blaming the roll.
Can I use one mandrel for every roll I own?
Only if every roll shares the same arbor hole. Pilot diameter is a hard compatibility spec. Our straight cartridge rolls all use a 1/8" arbor, so a 1/8" pilot mandrel covers the whole range — but rolls from other systems may use 3/16" or 1/4" and need the matching pilot.
How long a mandrel do I need for cylinder head porting?
Depends entirely on the head and where the restriction sits. Most port work lives in the four to eight inch range, with longer mandrels reserved for deep runners and large-port applications. Buy the range rather than guessing at one length, and always run the shortest one that reaches, because a shorter shaft runs truer and faster.
Do cartridge rolls work on aluminum?
Yes, and the self-renewing construction helps — a fresh layer keeps exposing as the outer wrap loads with aluminum. Speed still matters more than pressure. Aluminum welds to dull grain under load, so a slow roll pushed hard is the exact recipe for smearing rather than cutting.
Straight or tapered?
Straight rolls hold diameter along their length and are the right choice against a wall or through a bore where the contact patch should stay even. Tapered and cone shapes concentrate the cut toward the tip for radii, fillets, and getting into a corner. Most internal work ends up using both.
Can I run these in a drill instead of a die grinder?
Mechanically the shank will fit a chuck, but a drill tops out far below what these diameters need. At typical drill speeds a small roll is deep in the burnishing range and will not cut. Cartridge rolls are a high-speed rotary format — a die grinder or rotary tool is the correct platform.
